LCB 025 – Laser marking, code grading and batch reconciliation
2D coding equipment with integrated inventory management – suitable for cleanrooms.

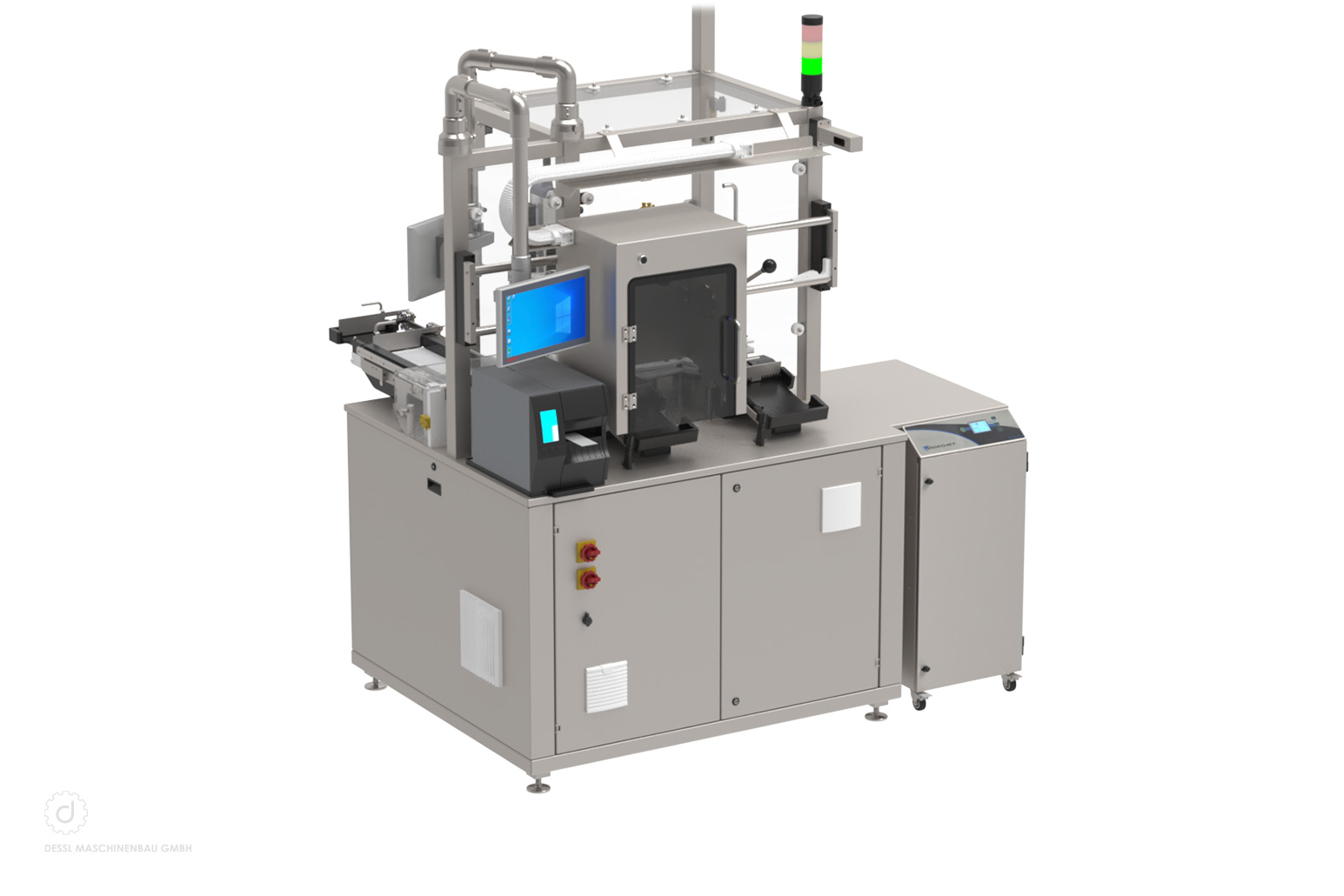

The LCB 025 is a high-precision system for laser marking, code verification and batch reconciliation of packaging materials, specifically designed for cartridges. The filled cartridges are fed manually from a tray and conveyed into the transport system via a conveyor belt and a screw conveyor.
An integrated laser marks each cartridge cap with a unique QR code. A high-resolution camera then checks the readability and quality of the code (code grading). Cartridges with faulty codes are automatically rejected, whilst flawless products are forwarded for counting.
Precise counting takes place in two trays that are filled alternately. As soon as a tray is fully loaded, the counting process is completed. The cartridges can then be removed manually, and the tray closed and sealed – ensuring a consistently controlled and efficient process.
- Fully integrated accounting unit for precise piece-by-piece counting and GMP-compliant batch reconciliation
- Convenient loading and unloading of Acrylux trays
- Precise application of a 2D code using a laser (0.066 mm per module)
- Laser extraction system including H14 filter
- Integrated camera inspection for crimped caps to ensure maximum product safety
- Integrated camera inspection for 2D codes (position and content of the code, as well as code grading in accordance with ISO/IEC 15415)
- Precise and gentle transport of the cartridges
- Position locking via vacuum technology
- Cross-checked reject ejection
- Long autonomous operation time thanks to two good product outlets
- Up to 100 cartridges/min
- Suitable for use in cleanroom zone C
- No additional laser safety measures required due to laser class 1
