VAA 025 - Vial Unpacking System
Efficient unpacking of bottles from Safepacks

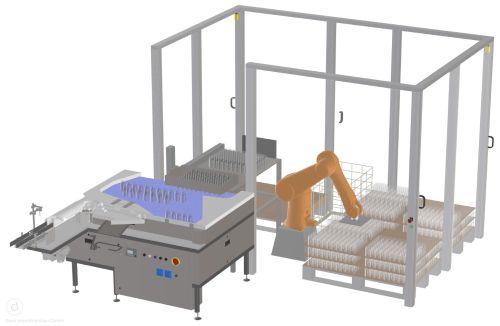

The VAA 025 is an innovative system specially developed for the automated unpacking and transfer of stable bottles. The bottles are delivered in sealed Safepacks on Euro pallets and fed into the machine.
A precision robot removes the trays and transfers them to the workstation, where the shrink wrap is carefully removed. The bottles are then conveyed directly to the next production stage via a conveyor belt – ensuring a smooth and efficient process flow.
- Safepacks – film-sealed bottles/vials
- Up to two Safepacks per minute with a single robot
- Two pallet storage bays for extended autonomous operation
- Storage for interlayers
- Direct disposal of film for maximum cleanliness
- Optional upgrade for higher throughput
- Modular design depending on the level of automation
- ‘Cold’ cut – no smoke, no particles from melting processes
- Precise and contour-following blade guidance via a 6-axis robot system
- Specially developed compensation system for the cutting blade
- Automatic blade change for maximum occupational safety
- Special blade to protect the bottles
- Optional accumulation table with blow-off station
